Electronics Kit WF1

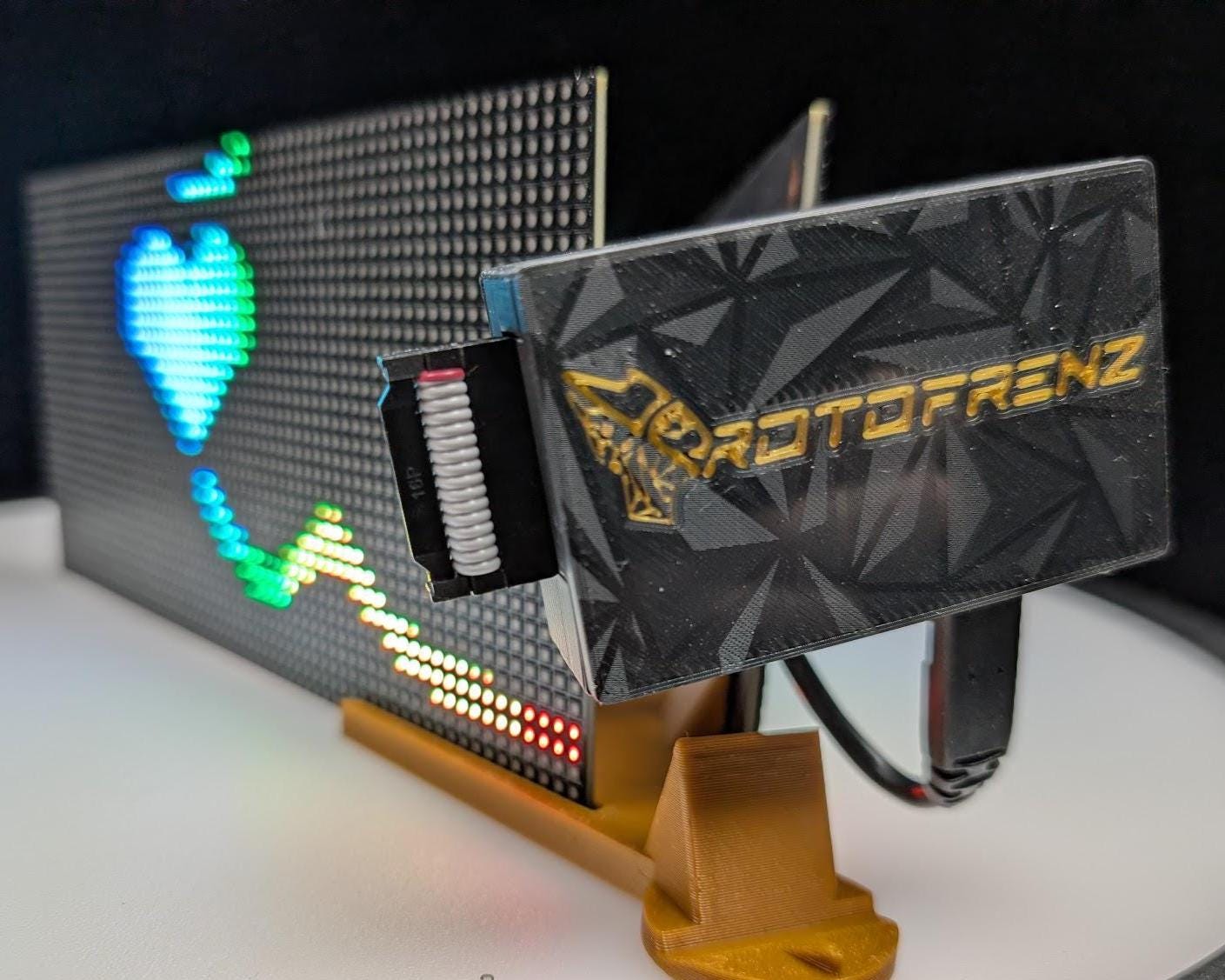

The WF1 Full-Color Panel electronics kit — sold without a head base. Everything you need to put a full-color LED face display in your existing build or custom shell. Assembled and tested before it ships.
What's Included
- Huidu WF1 WiFi controller (pre-programmed)
- 2× 192×96mm full-color (Full-Color Panel) LED display panels — smooth, high-brightness multi-color face display
- All wiring and connectors
- USB drive with demo face program, offline Face Maker, and manual
WF1 Controller — How It Works
The Huidu WF1 creates its own WiFi access point. Connect from any iPhone or Android using the free LEDArt app to:
- Switch between pre-loaded face expressions
- Adjust colors and brightness
- Upload custom 64×32 pixel art faces
- Control animation speed and style
Make it yours: design custom faces and complete animated face programs free at facemaker.protofrenz.com — download to the included USB stick and plug it in. No app or software needed. Prefer the app? The free LEDArt app still controls everything over WiFi.
No coding required. Face library and pixel art editor available at WF1 Controller Manual →. A Recovery USB drive with manual and backup files is included.
Note: The WF1 does not include a boop sensor, talking mouth, or cooling fan. For those features, see the Studio tier with the ProtoFrenz 3.0 controller.
Compatible Heads
MK3, MK5, and Cipher (Squared). The full-color (Full-Color Panel) panels require a 192×96mm display bay — not compatible with MK2, Iris, Nyx, or ZillionRoss head bases.
📖 WF1 Controller Manual
LedArt app setup, face upload guide, troubleshooting, and compatible file formats. Bookmark this before your order arrives.
Power
Requires a MicroUSB power bank (5V, 3–4A recommended). A compatible 10,000mAh MicroUSB power bank is available separately in our accessories section.
Want More Features?
For boop sensor, voice-reactive talking mouth, WiFi browser configuration without an app, and Full-Color Panel compatibility, see the ProtoFrenz 3.0 Full-Color Panel kit.
Not Included
Head base · visor · power bank (sold separately) · boop sensor · talking mouth · cooling fan
🛡️ 90-Day Warranty Included
Covered for 90 days against manufacturing defects under normal use — see the warranty policy for details. Extend to 9 or 15 months total with the Product Protection Plan.
Ships in padded envelope. Assembled and tested. 3–5 business days fulfillment.
