ProtoFrenz
ProtoFrenz 3.0 Controller — WiFi, WebUI, 134+ Presets, MAX7219 or HUB75/P3
ProtoFrenz 3.0 Controller — WiFi, WebUI, 134+ Presets, MAX7219 or HUB75/P3
Regular price
$275.00 USD
Regular price
$285.00 USD
Sale price
$275.00 USD
Unit price
per
Couldn't load pickup availability

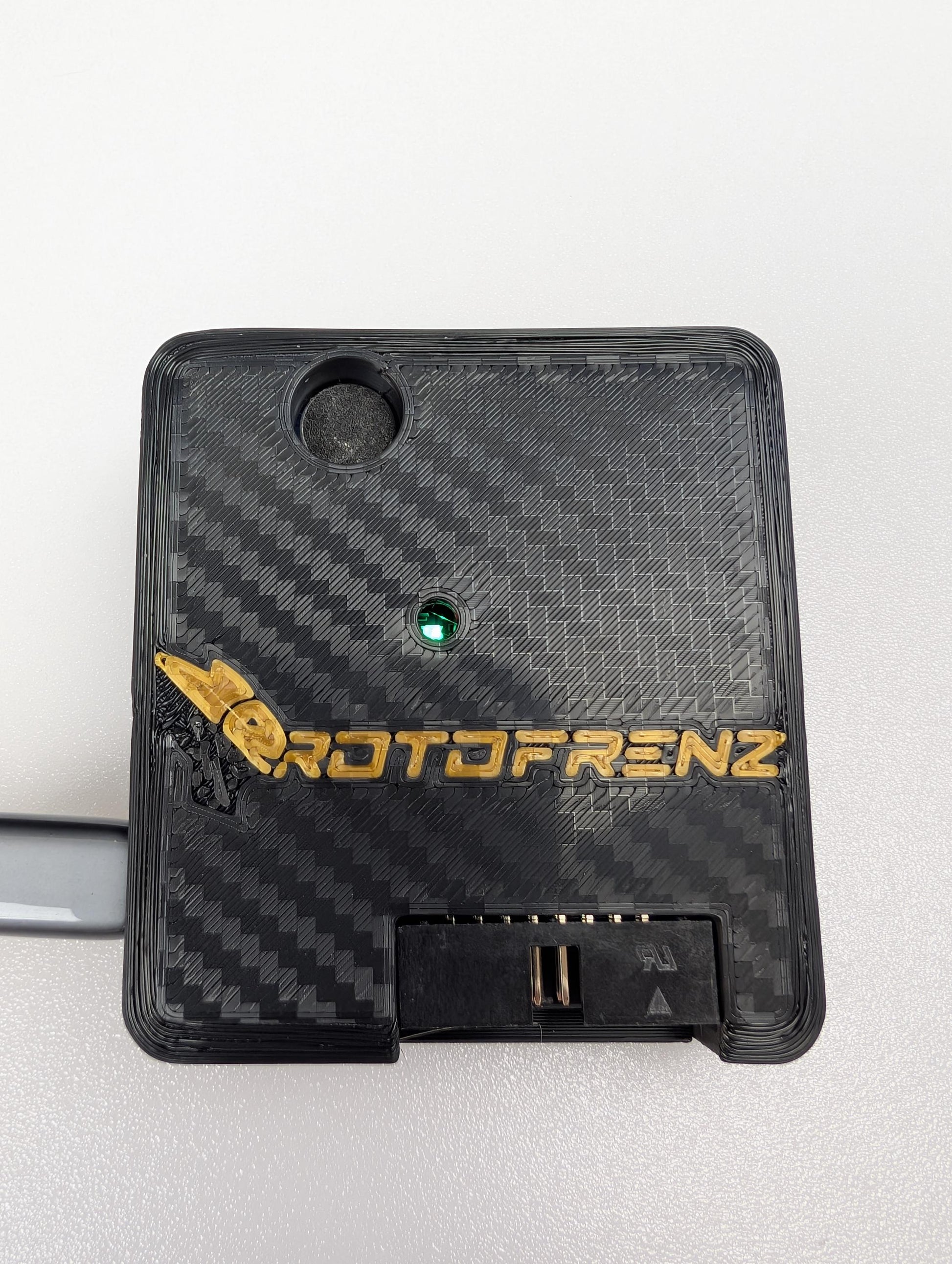

The ProtoFrenz 3.0 is the controller at the heart of every Studio and D-Lux head — now available as a standalone unit. Built on an ESP32 chip with a purpose-built WebUI accessible over WiFi, it brings professional-grade protogen electronics to any compatible head base without requiring a complete head purchase.
No app, no IDE, no soldering of components. Connect to the ProtoFrenz WiFi network, open your browser, and you're in.

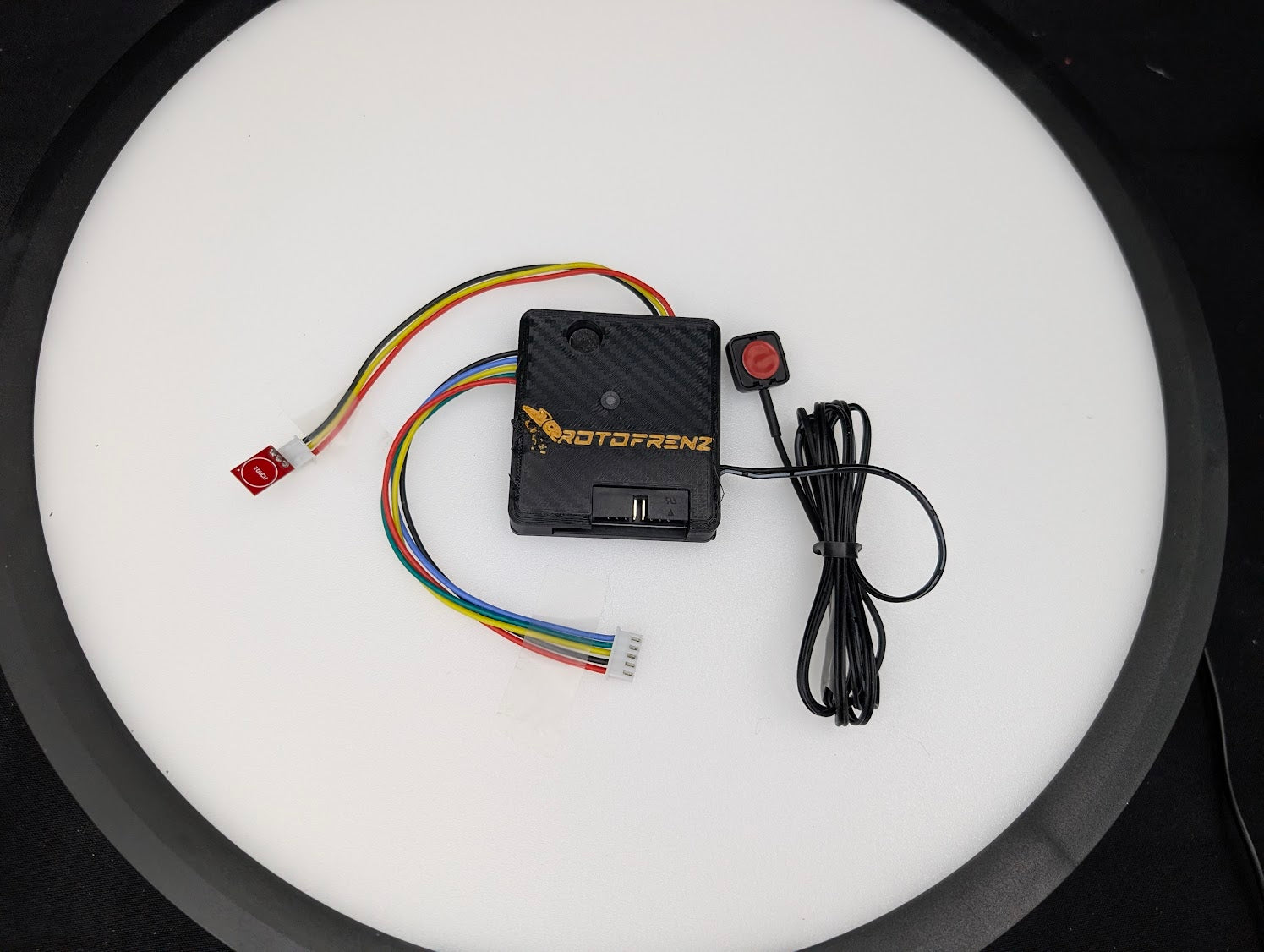

What's Included
- ProtoFrenz 3.0 controller board (ESP32-WROOM-32E)
- Onboard MAX9814 microphone — voice-reactive mouth animation built in
- TTP223 capacitive touch sensor — for expression switching
- Momentary push button to change expressions
- 2-sided mounting tape for installation
- MAX7219 connector or HUB75/P3 display cable available. See options.
Display Compatibility
- MAX7219 connector — compatible with all head styles: ProtoFrenz Iris, Nyx, Cipher, MK2, MK3, MK5, ZillionRoss
- HUB75/P3 display cable — compatible with Cipher, MK3, MK5, and ZillionRoss head styles
Features

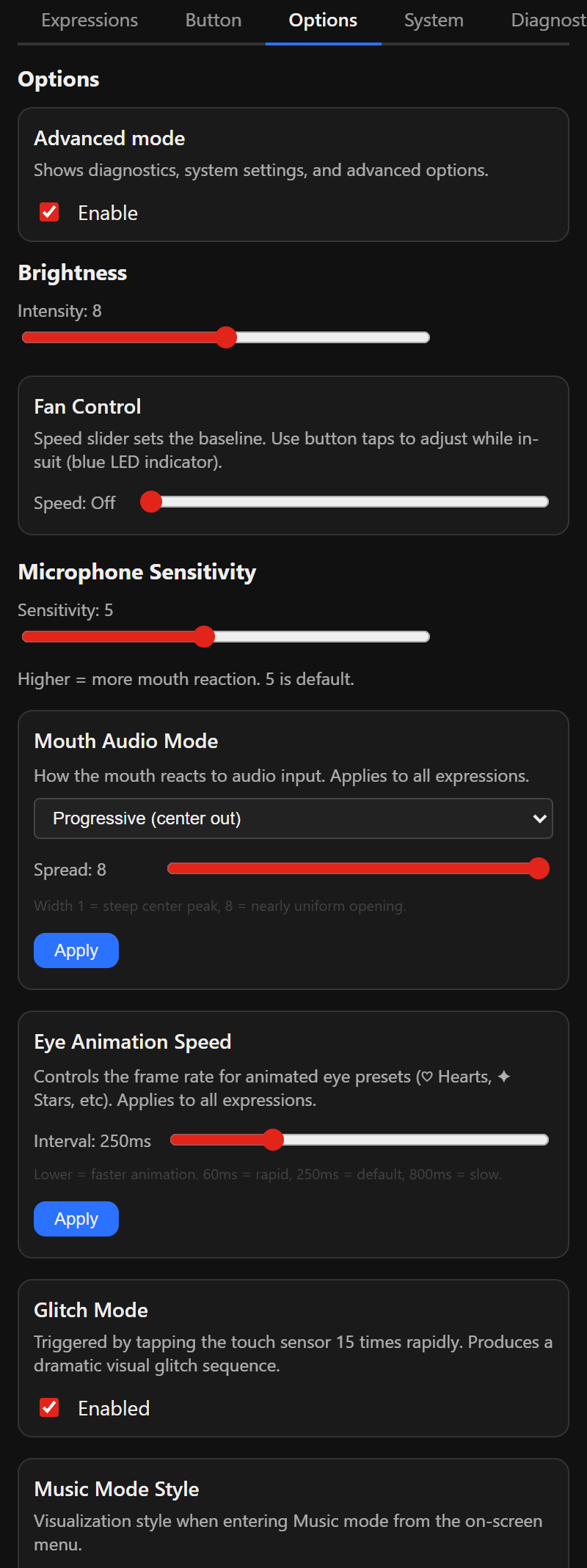

- WiFi WebUI — no app required, works from any browser on your phone or laptop
- 134+ built-in expression presets
- 4 active expressions with touch sensor switching
- Voice-reactive mouth animation via onboard microphone
- Dance mode, music sync mode, glitch mode, animated gradients

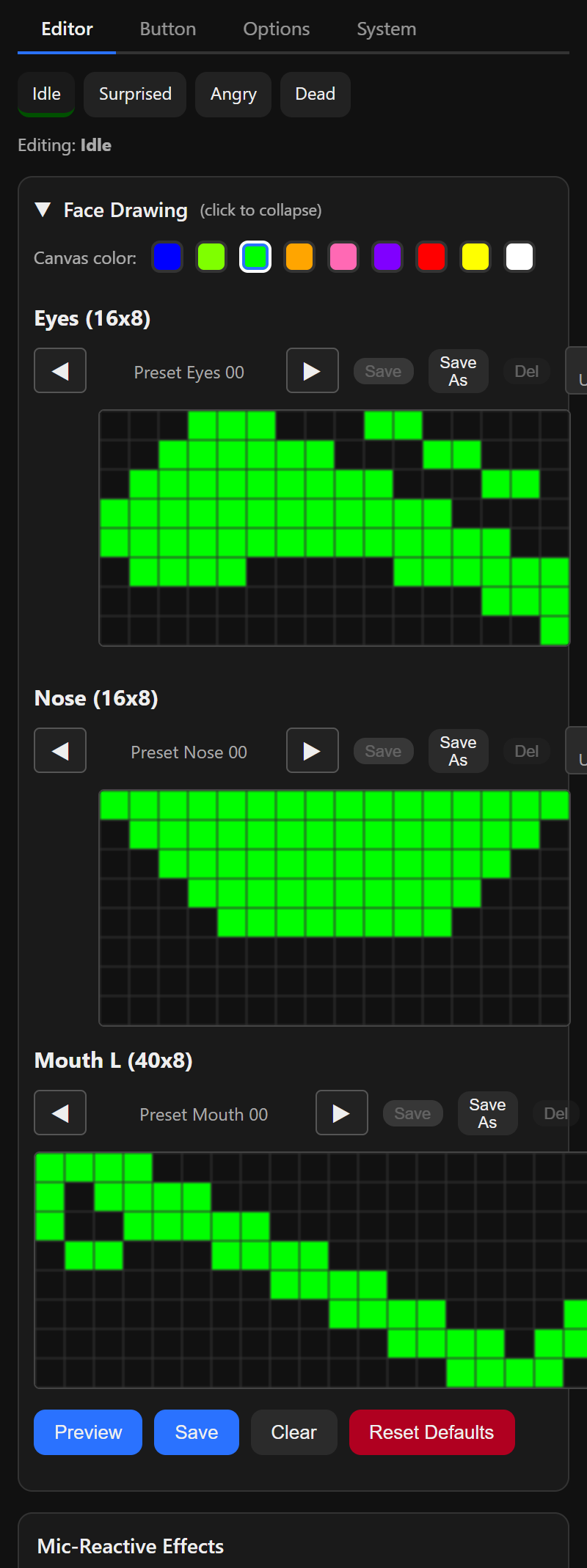

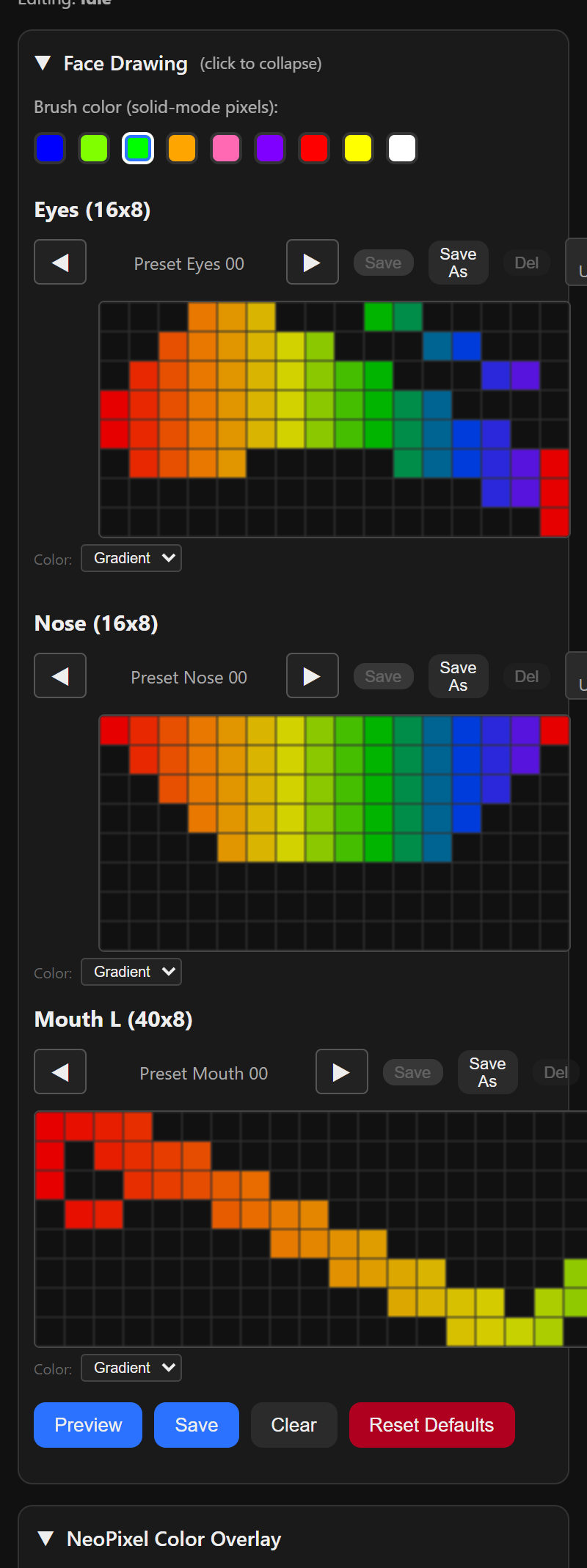

- Custom face editor — draw and upload your own expressions
- OTA firmware updates — new features delivered over WiFi
What's Not Included
Head base · assembled head · LED display matrices · power bank · display mount
Need a complete ready-to-wear head? See our Studio and D-Lux lines.
Skill Level
None. Plug and play. See more info in the ProtoFrenz Controller Manual.
Made to order in Portland, Oregon. Ships within 1 week.
